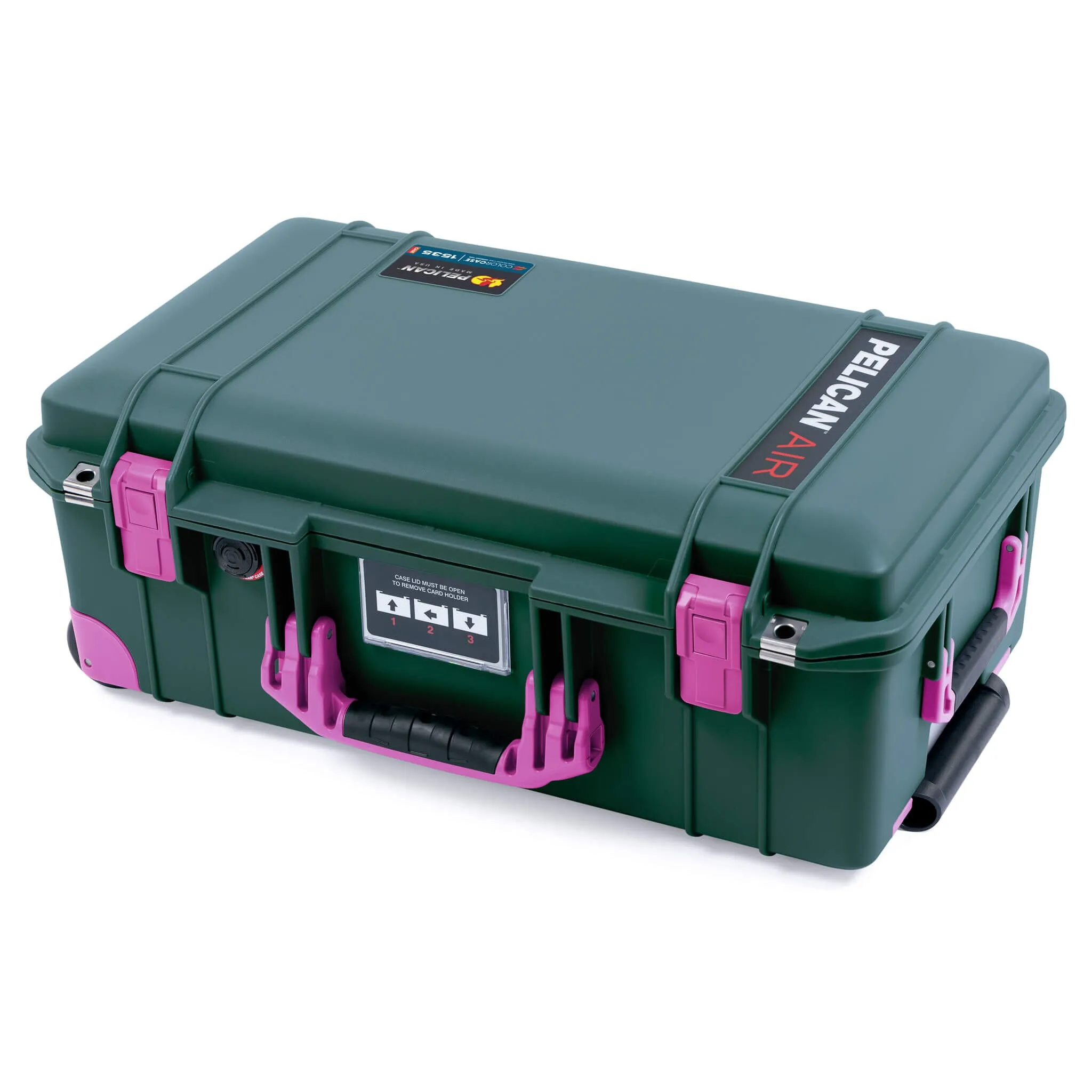

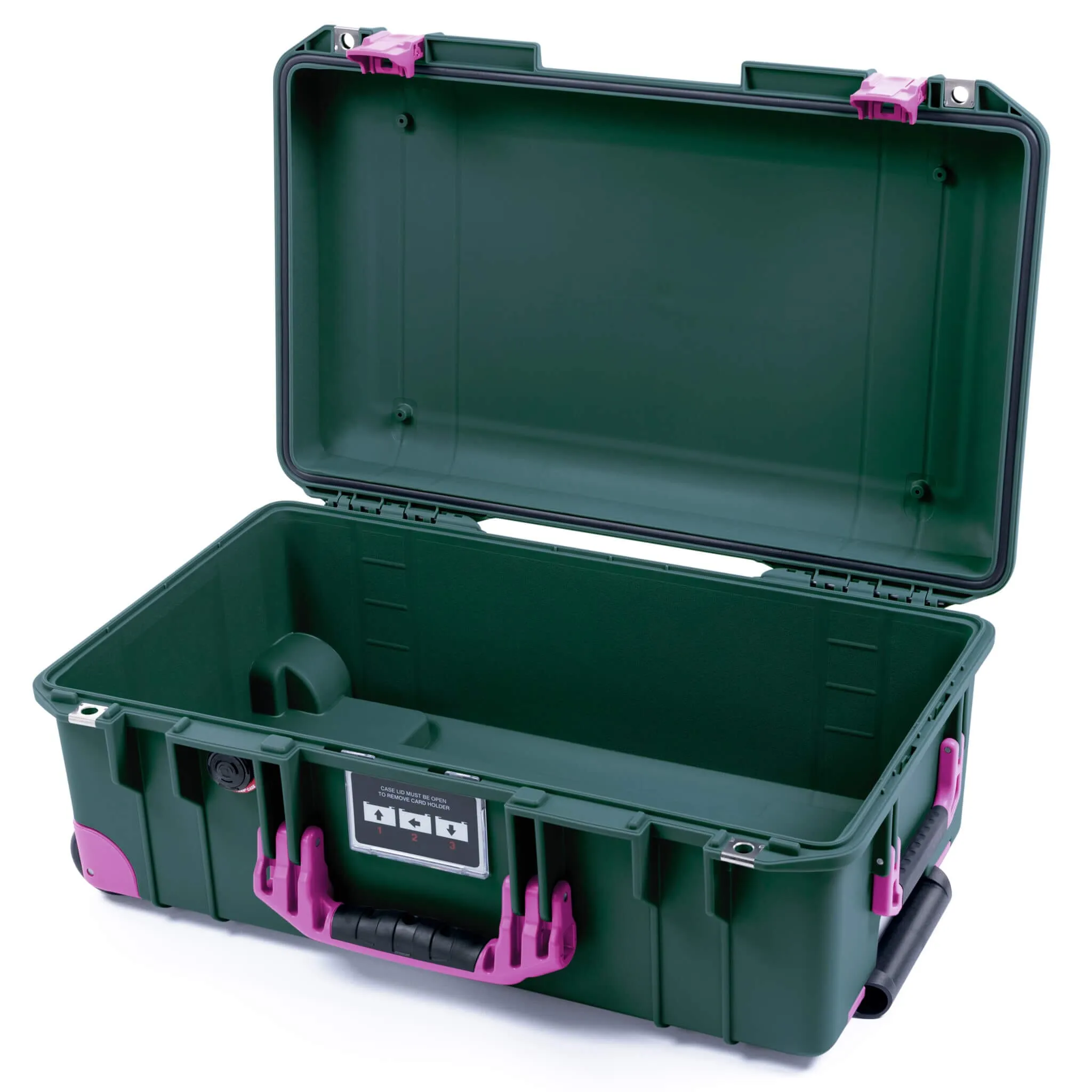

Pelican™ 1535 Air Carry-On Hard Case

• Interior: 20.39" x 11.20" x 7.21"
• Weight (Empty): 8.69 lbs
• Series: Air Case
• Case Color: Trekking Green
• Handles, Latches & Trolley Color: Magenta
• Latches Type: Push-Button
• Wheels: Yes (2)
• Extendable Trolley Handle: Yes

• • Meets FAA carry-on luggage regulations
  • Watertight rubber O-ring seal, crush-proof, and dust-proof
  • Automatic pressure equalization/purge valve that balances air pressure inside the case
  • Super-lightweight proprietary HPX²™ Polymer

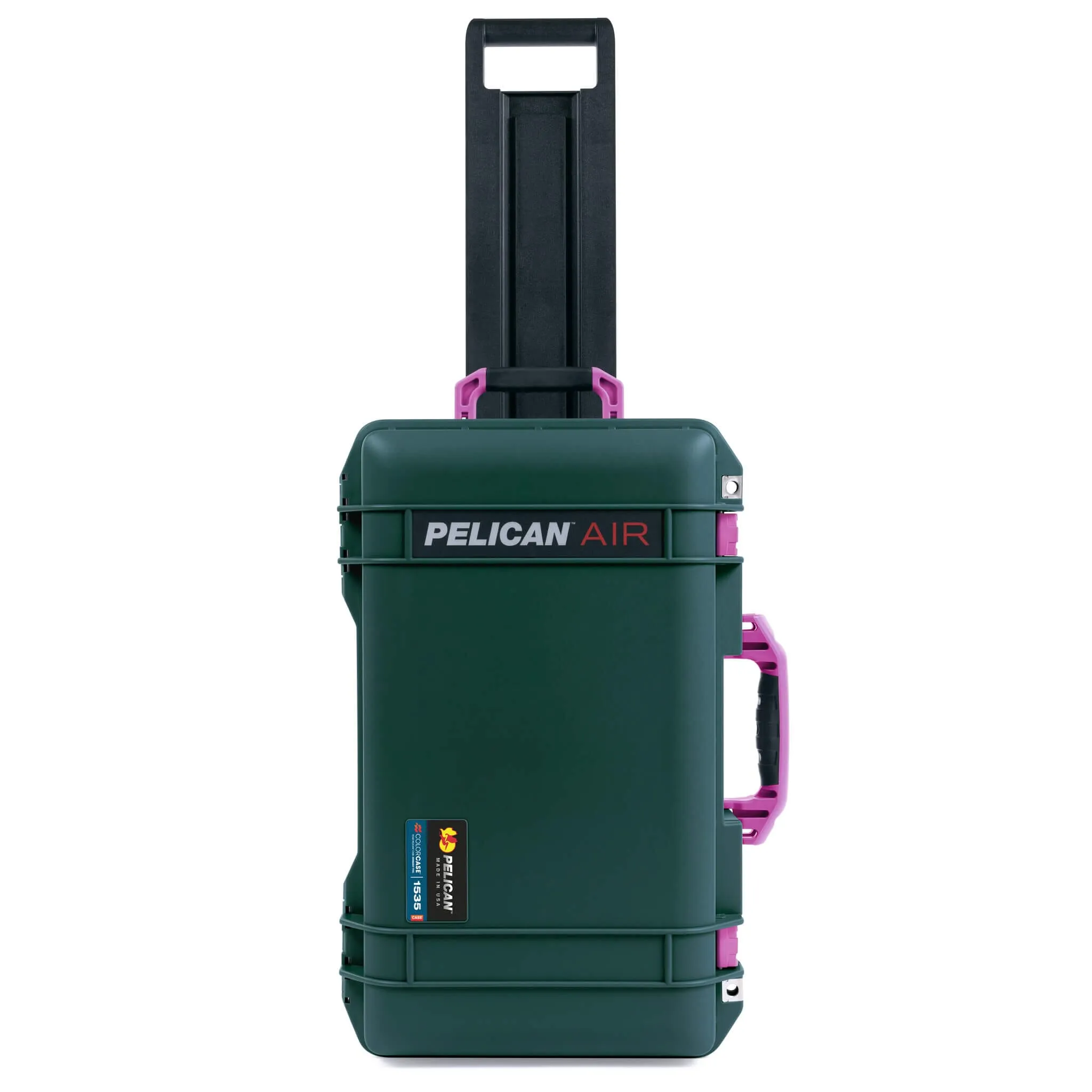

  • Retractable 16" extension handle and polyurethane wheels with stainless steel bearings for rolling travel
  • Two easy to open double-throw latches
  • Ergonomic comfort grip rubber over-molded handles
  • Card holder that can be placed on the front or side of the case
  • Stainless steel hinge pins and reinforced padlock protectors
  • Genuine Pelican™ product with lifetime warranty
• • Lid Depth: 2.00" (5.1 cm)
  • Bottom Depth: 5.21" (13.2 cm)
  • Total Depth: 7.21" (17.8 cm)
  • Interior (L X W X D): 20.39" x 11.20" x 7.21" (51.8 x 28.4 x 17.8 cm)
  • Exterior (L X W X D): 21.96" x 13.97" x 8.98" (55.8 x 35.5 x 22.8 cm)
  • Weight (Empty): 8.69 lbs (3.9 kg)
• • Internal Volume: 0.95 ft³
  • Buoyancy: 64.80 lbs
  • Case Material: Polypropylene
  • Latch Material: ABS
  • Pins Material: Stainless Steel
  • Purge Body Material: ABS
  • Purge Vent Material: 3 Micron Hydrophobic Non-Woven
  • Wheels Material: Polyurethane, Stainless Steel
  • Extendable Handle Material: Polypropylene

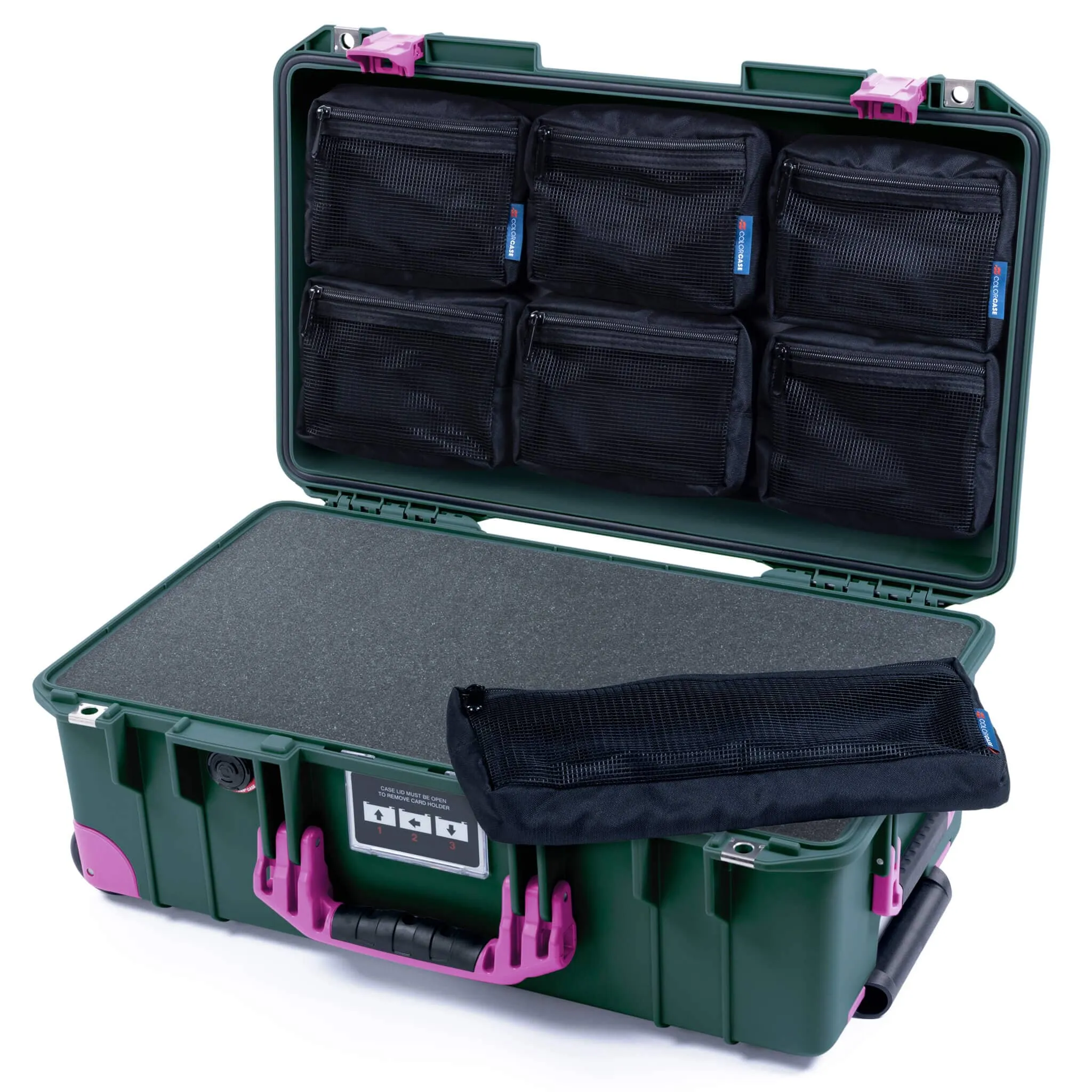

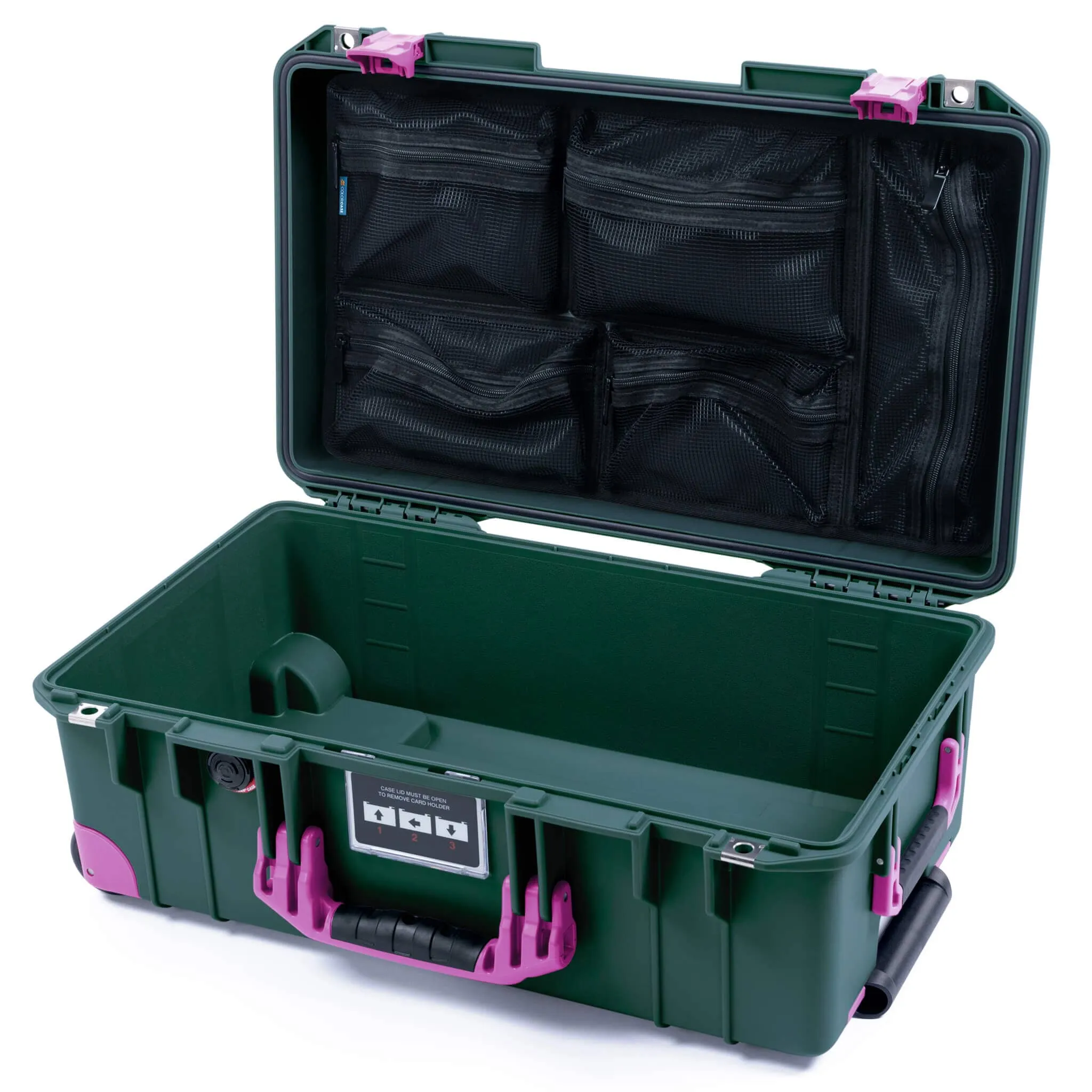

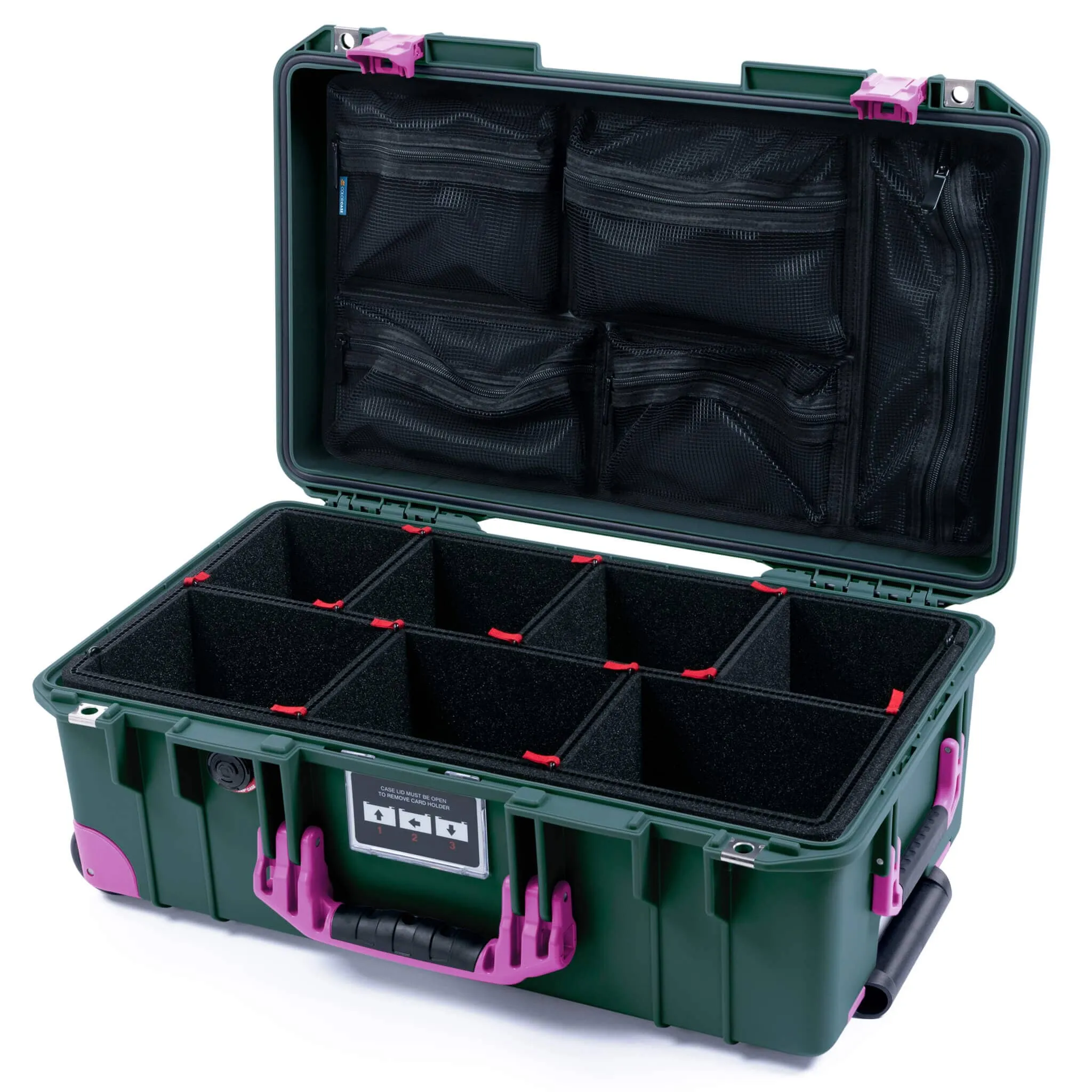

• Mesh Lid Organizer

  • Five mesh zipper pockets, plastic backing
  • Installs with 6 included screws

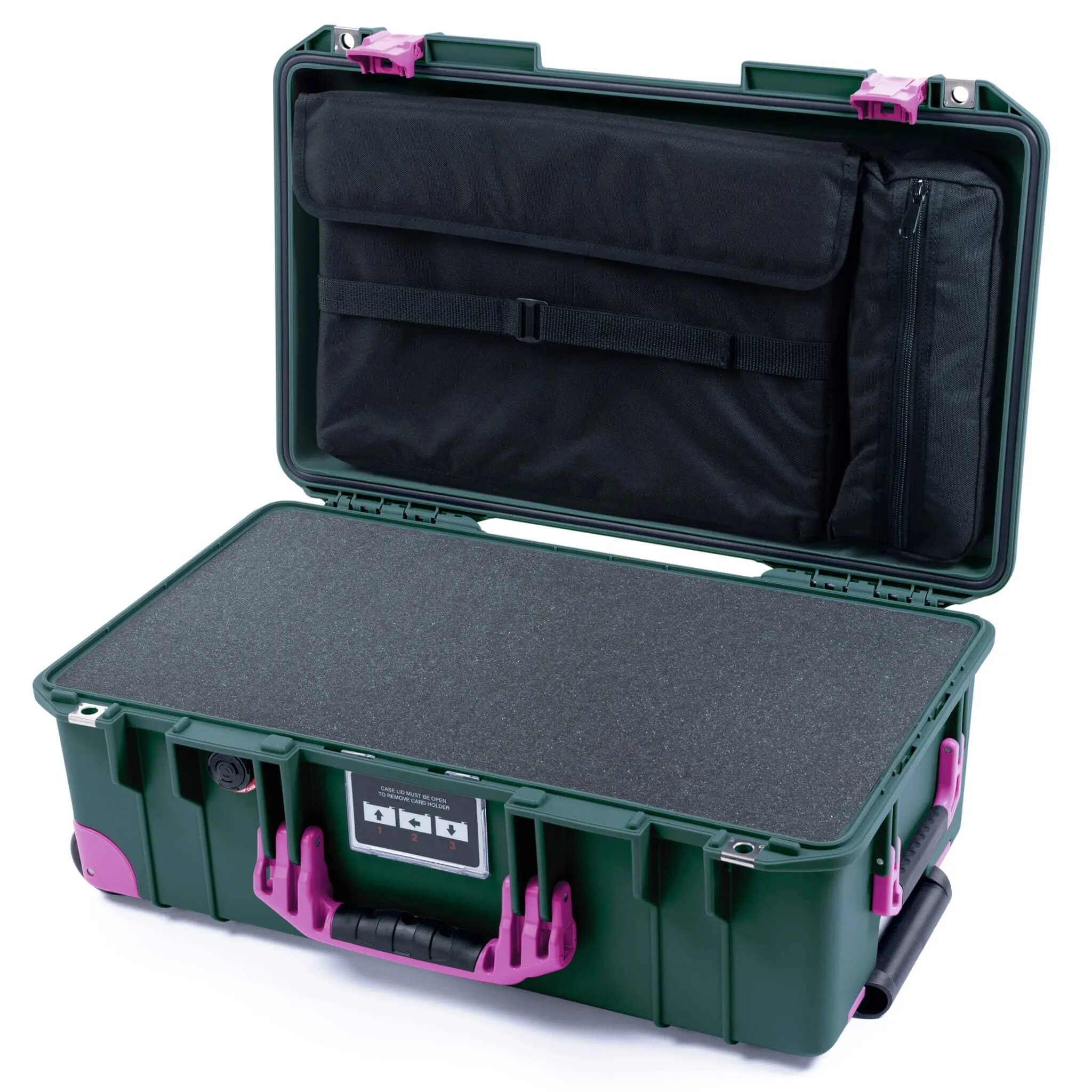

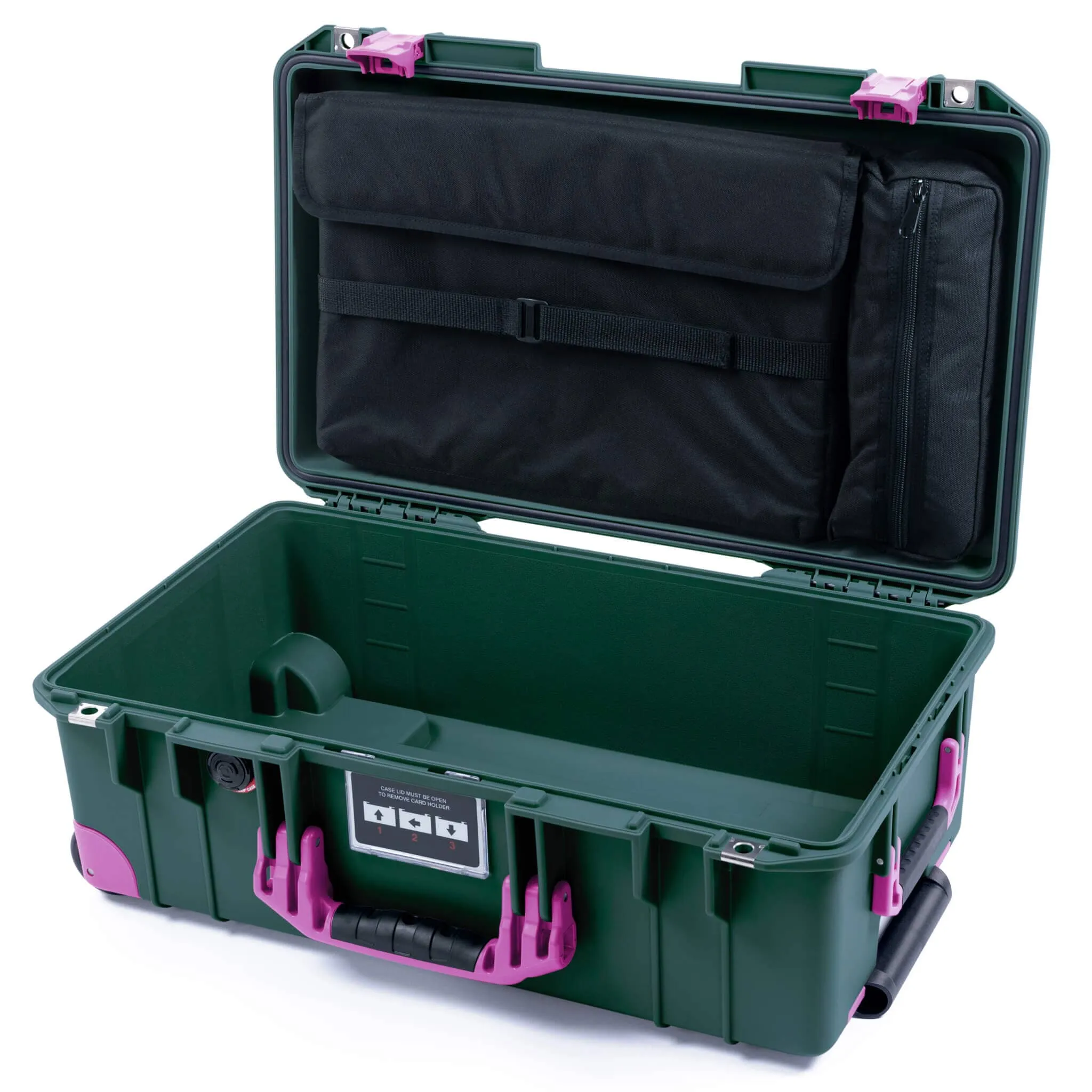

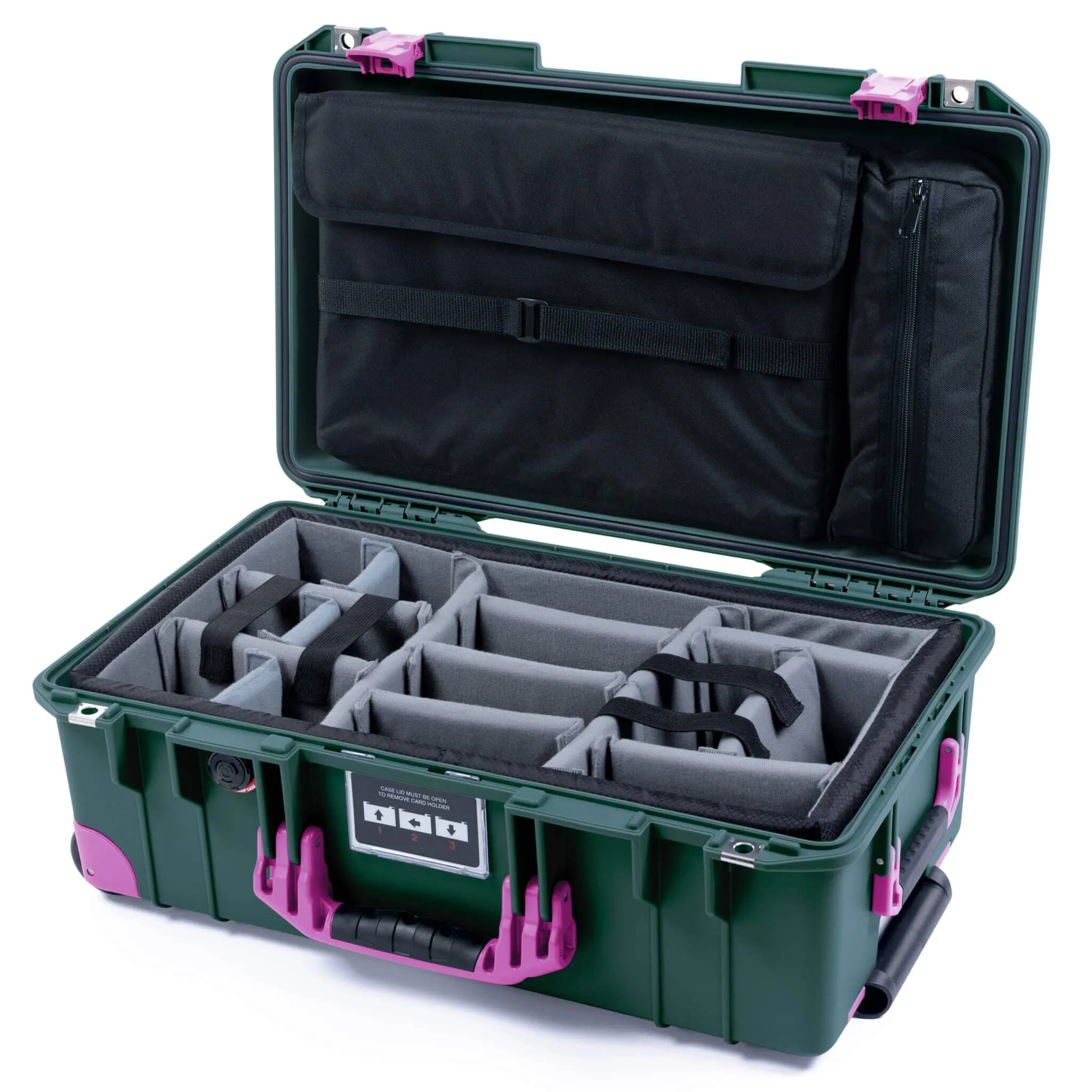

  Computer Lid Pouch

  • Fits laptop computers up to 15" x 11"
  • Removable computer pouch with additional zipper pouch, plastic backing
  • Installs with 6 included screws

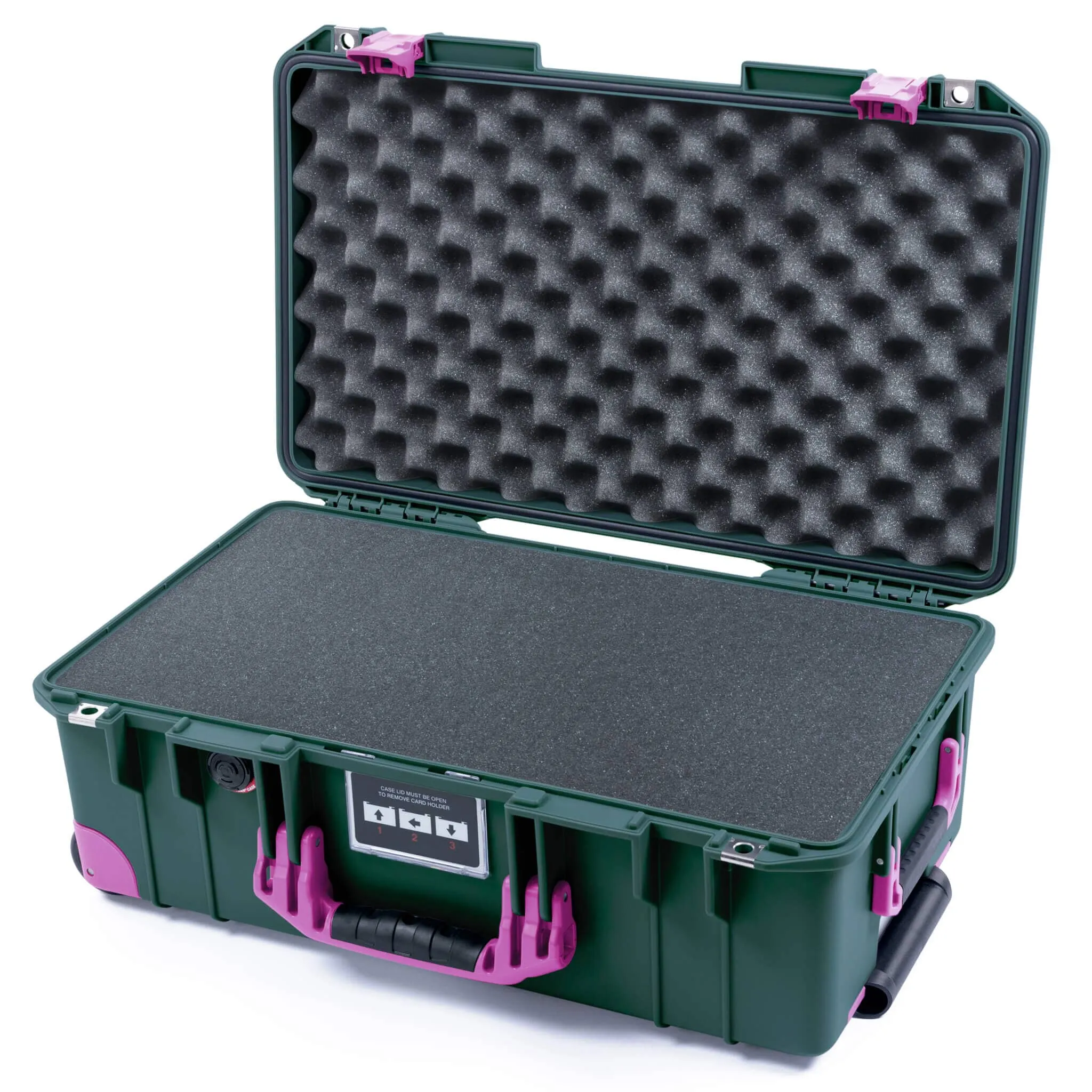

  Pick & Pluck Foam

  • Pelican Pick & Pluck foam is a 1.3 lb polyurethane foam with a perforated 1/2" x 1/2" grid of removable foam squares. Remove only what you need for a customized fit.

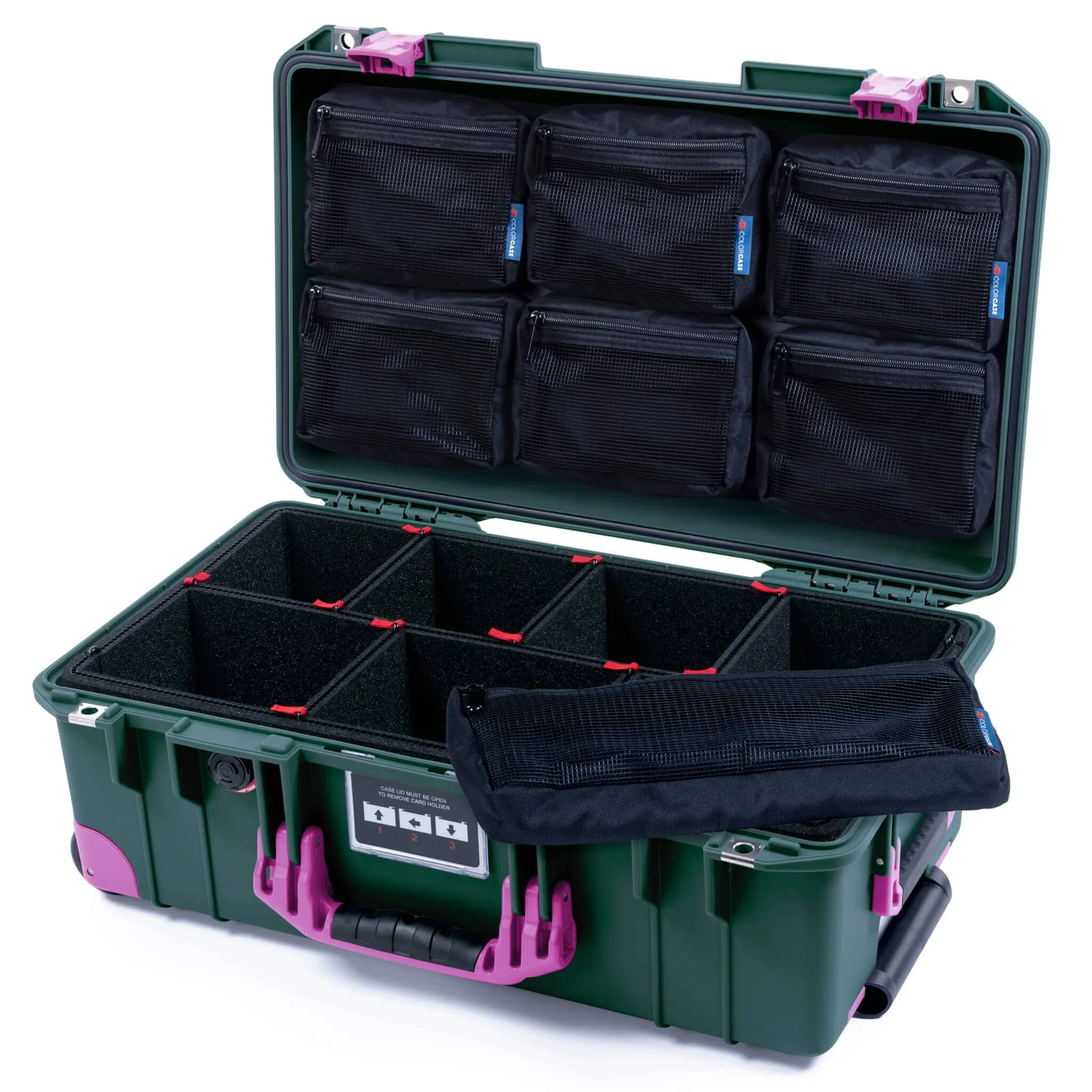

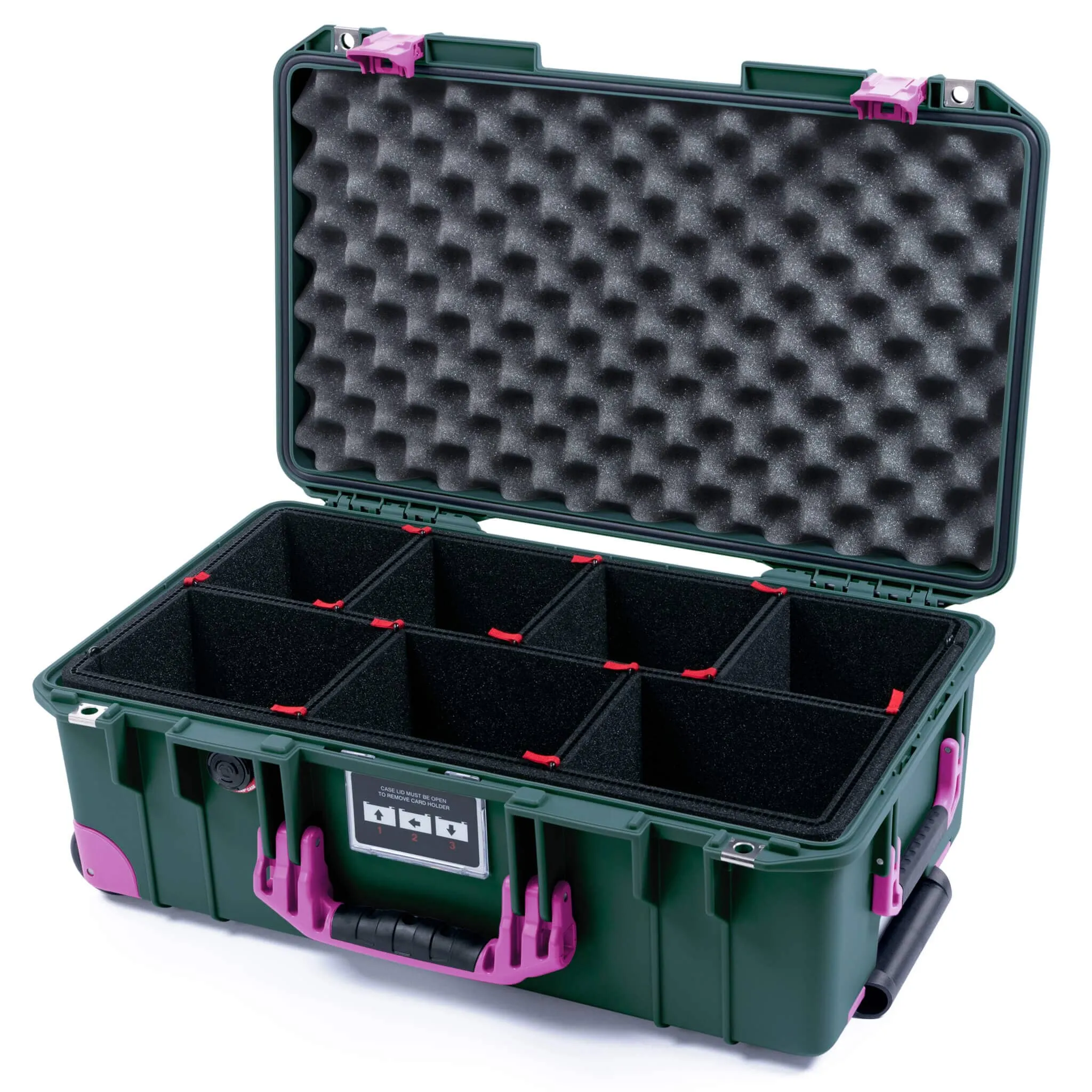

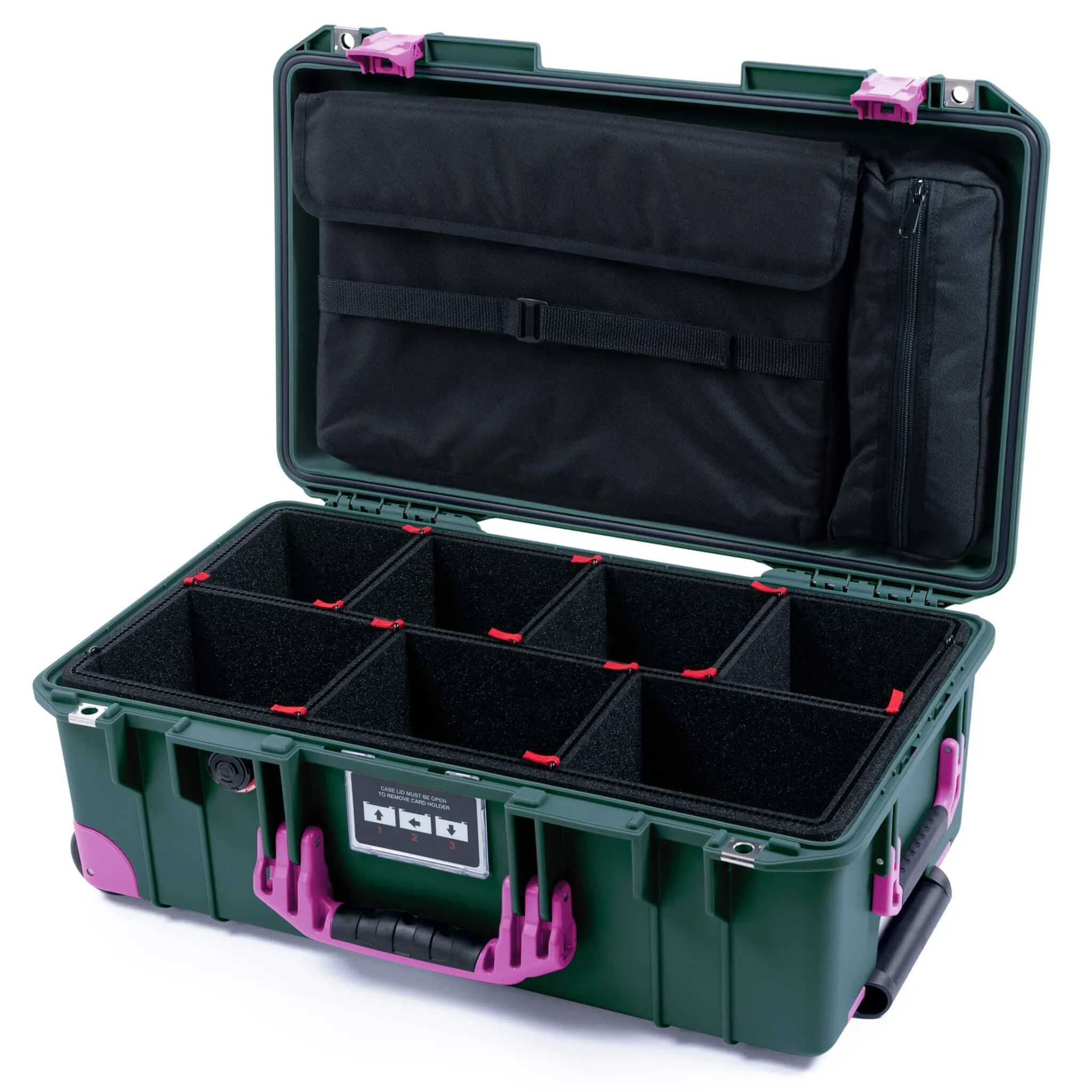

  TrekPak Divider System

  • Custom length perimeter insert for Pelican 1535 Air, two (2) divider inserts 20" in length, one (1) divider insert 15" in length; & one (1) divider insert 6" in length
  • One cutter tool, 20 pins, & 20 red pull tabs
  • Polyurethane bottom foam

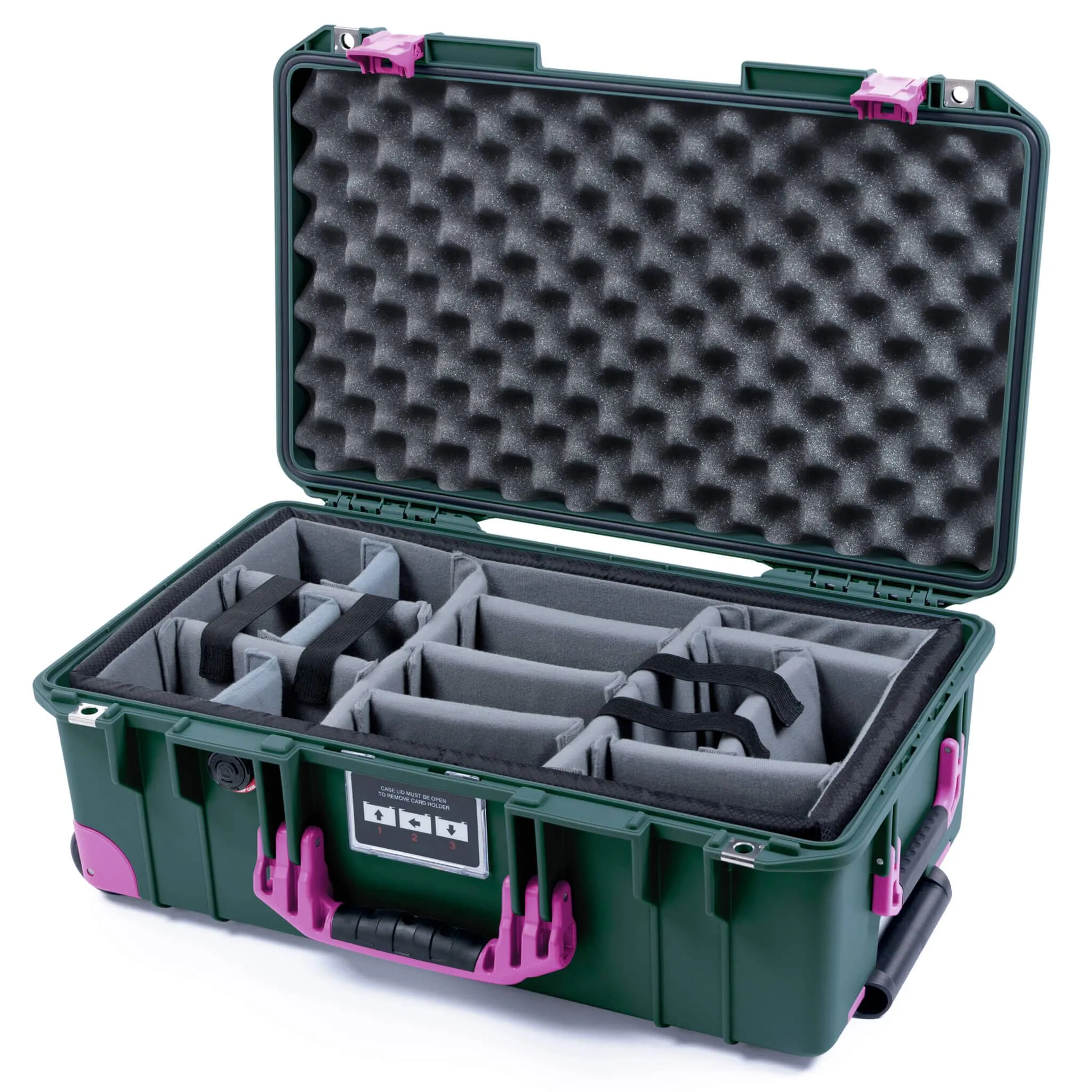

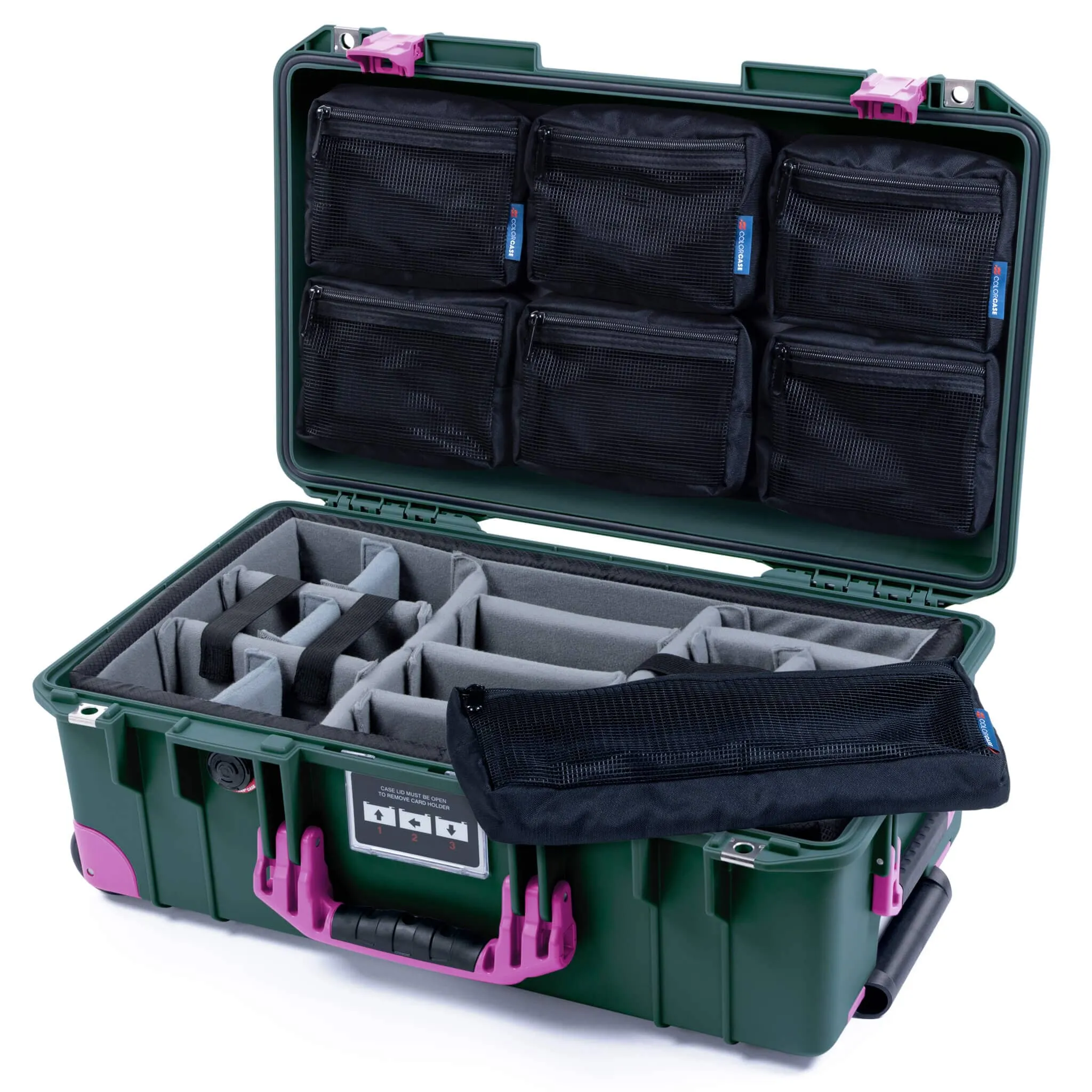

  Gray Microfiber Padded Dividers

  • 5" deep black & gray adjustable microfiber dividers with 3/4" thick perimeter padding & 3/4" thick bottom padding
  • Two (2) 9.5" long, 3/4" thick hinged microfiber dividers
  • Nine (9) 5.5" long, 3/4" thick microfiber dividers
  • Three (3) 2.5" long, 3/4" thick microfiber dividers
  • Four (4) 6" long, elastic Velcro straps

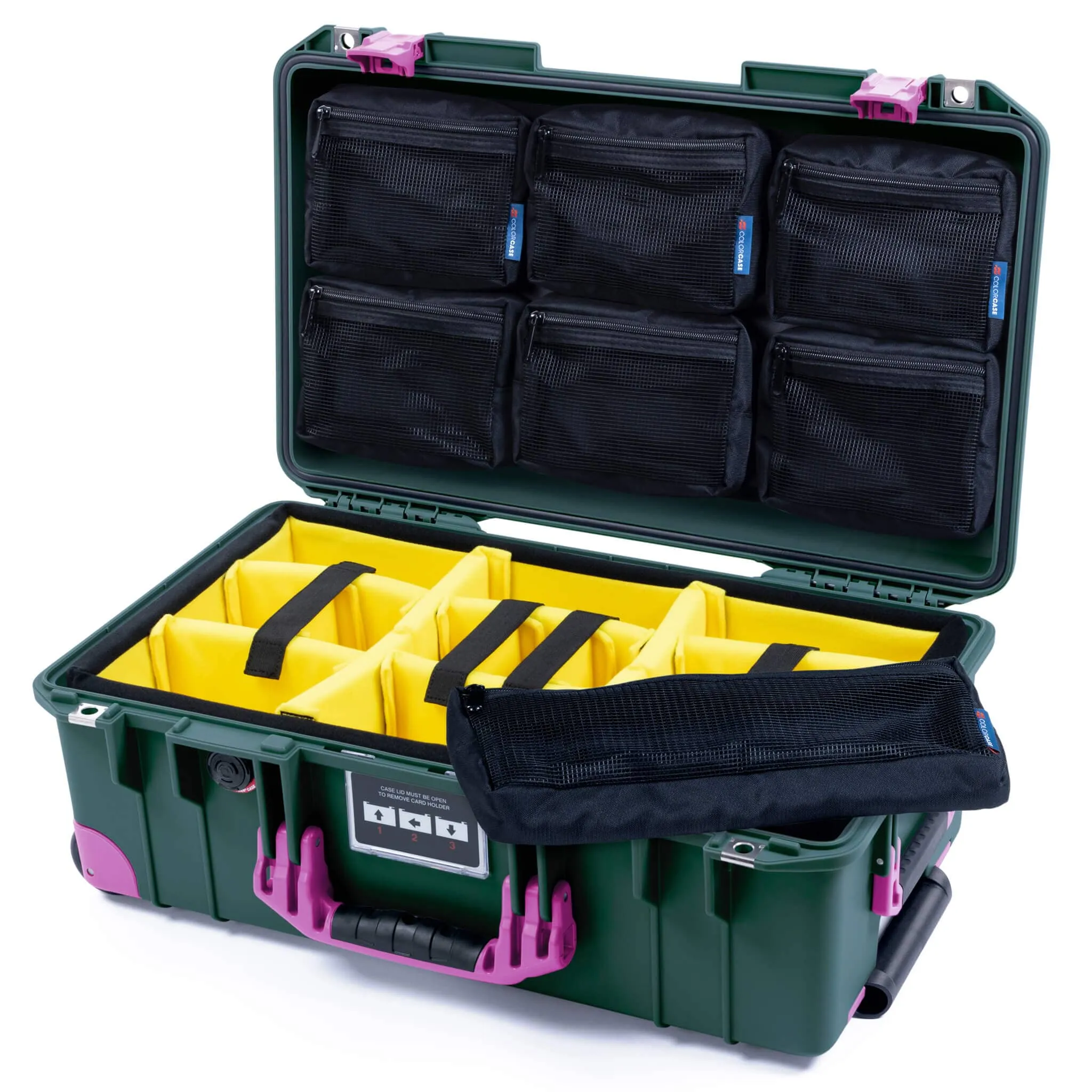

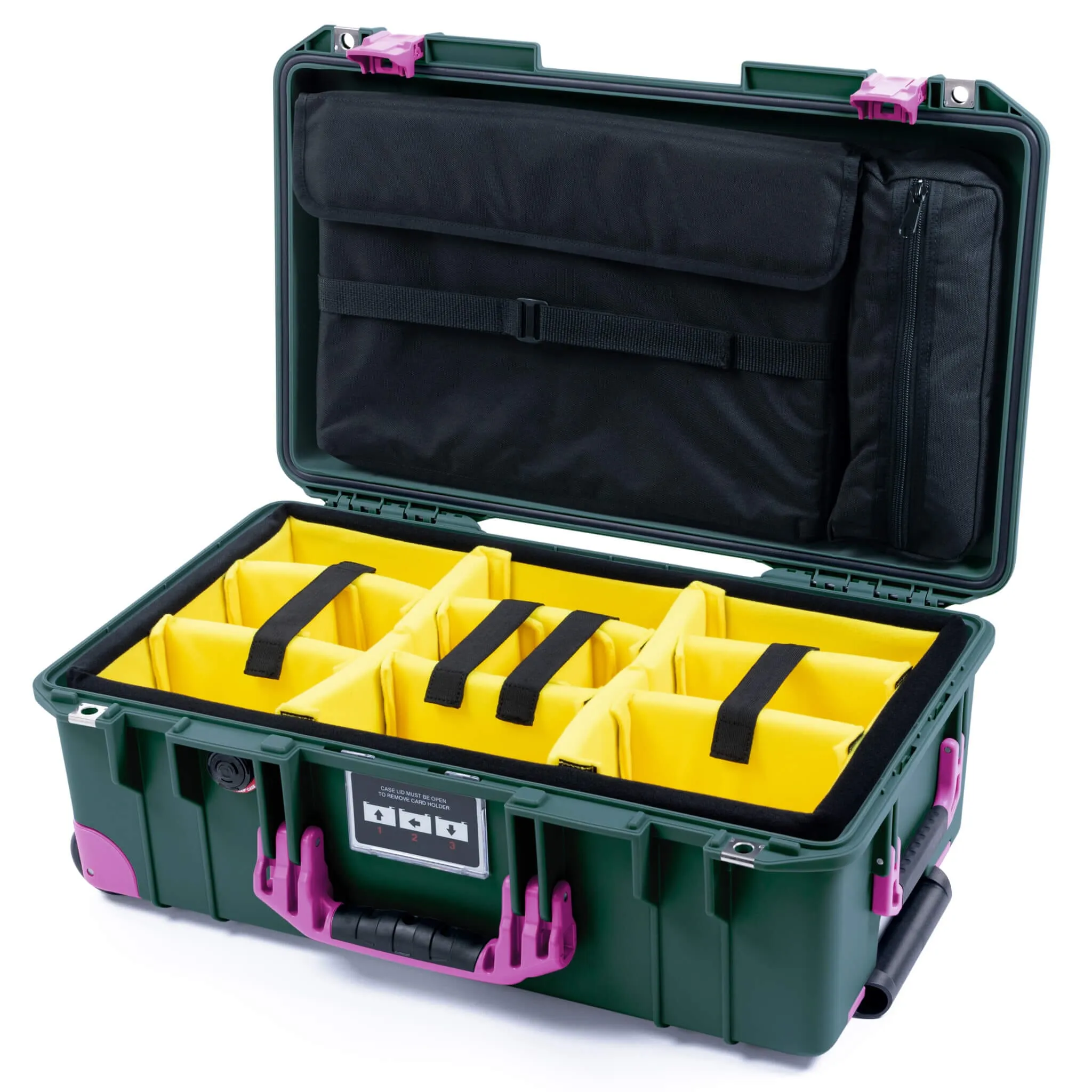

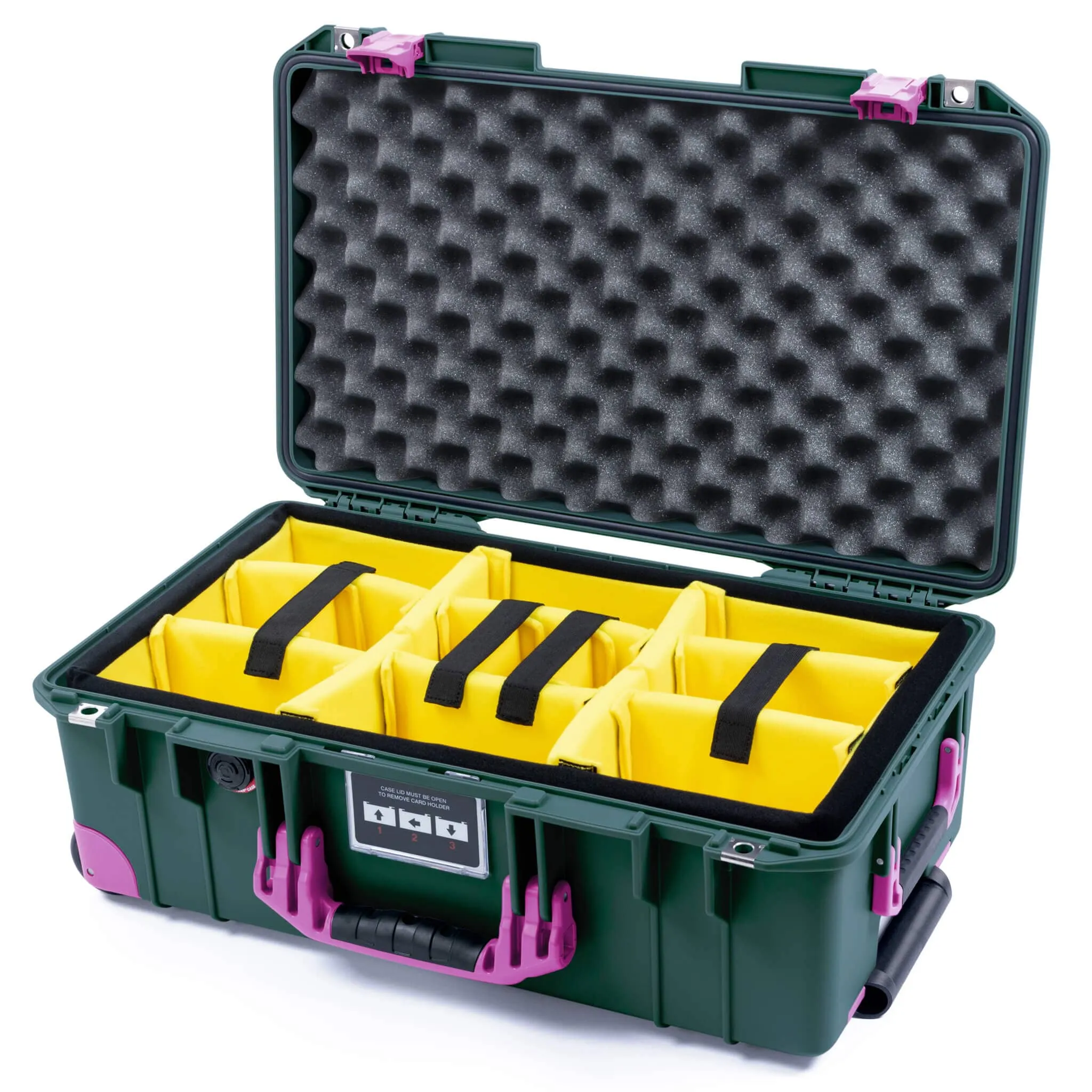

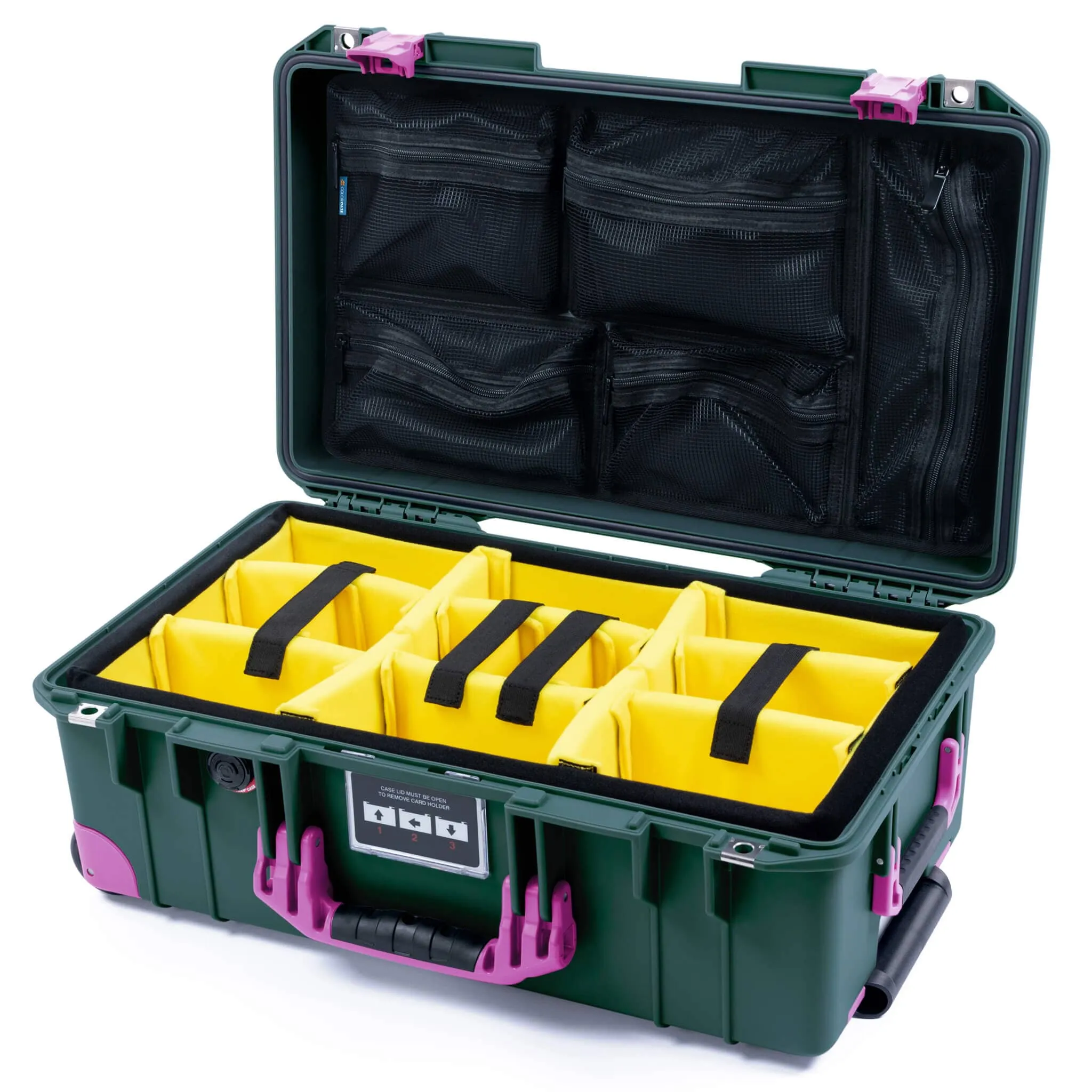

  Yellow Microfiber Padded Dividers

  • 5" deep black & yellow adjustable microfiber dividers with 3/4" thick perimeter padding & 3/4" thick bottom padding
  • Two (2) 9.75" long, 3/4" thick hinged microfiber dividers
  • Six (6) 5.75" long, 3/4" thick microfiber dividers
  • Three (3) 2.75" long, 3/4" thick microfiber dividers
  • Four (4) 6" long, elastic Velcro straps

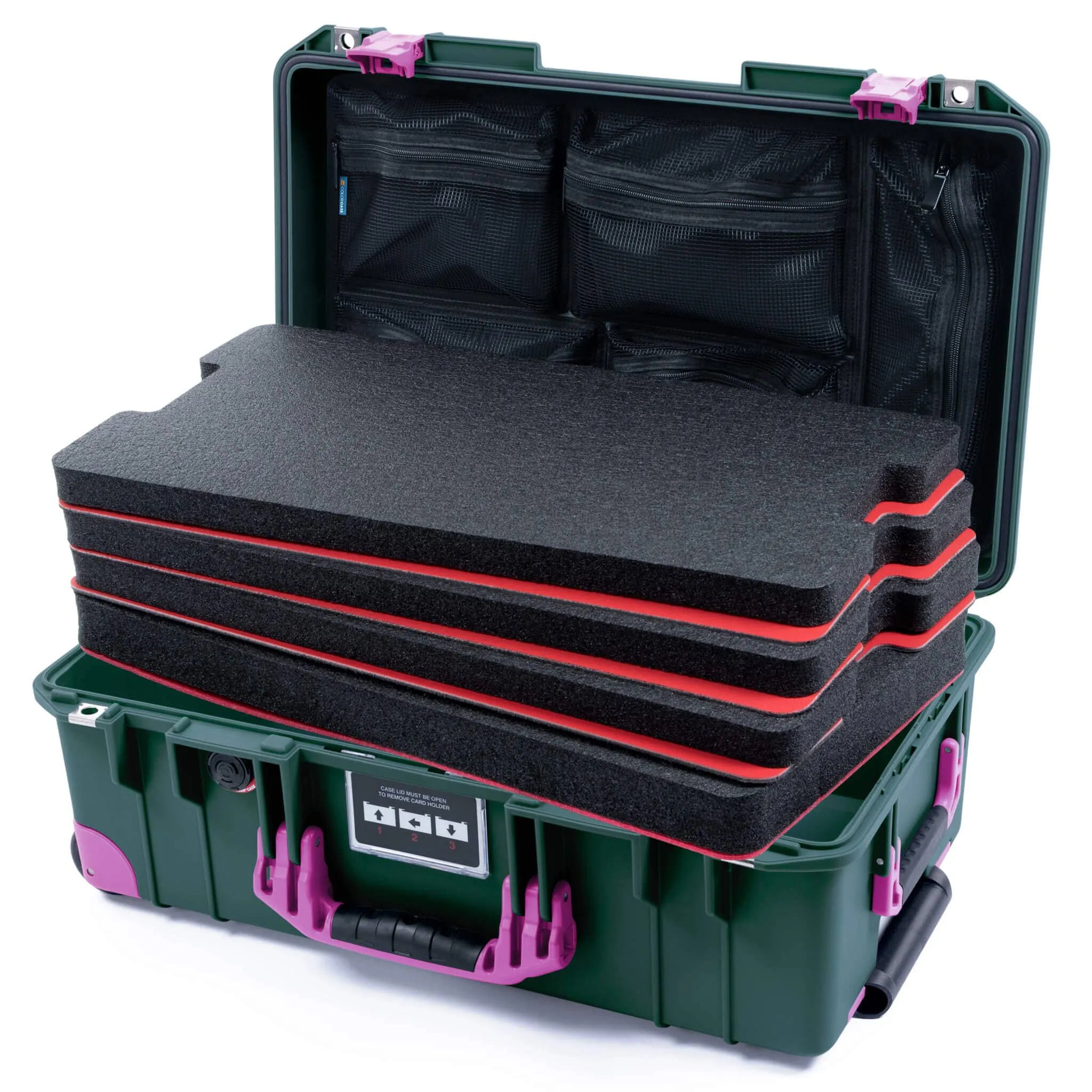

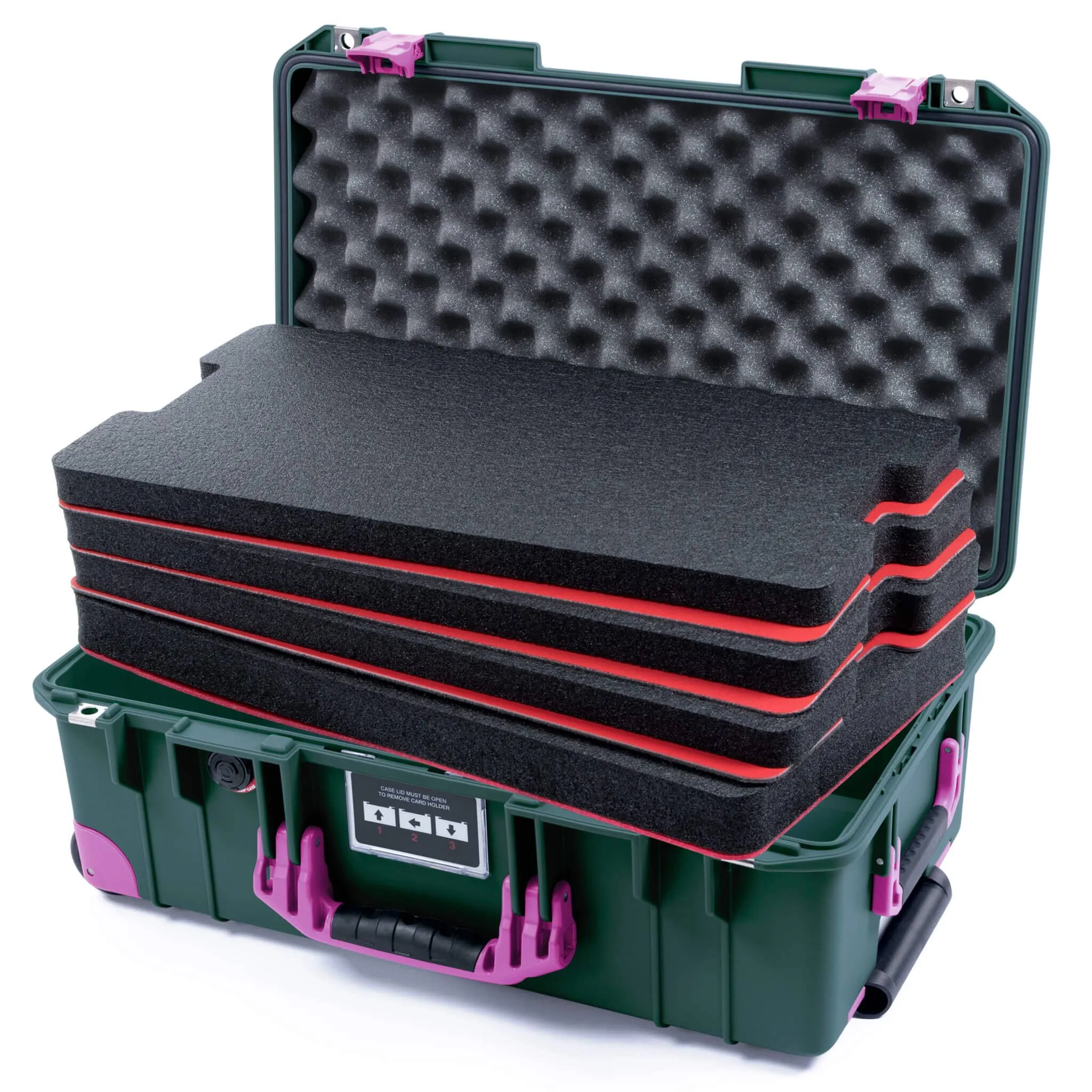

  Custom Tool Control Kit

  • Three (3) black 7/8" thick polyethylene foam inserts
  • One (1) black 2" thick polyethylene bottom foam insert
  • Three (3) red ABS plastic bottom backers (for removable trays) & one (1) red foam bottom backer (for bottom tray)
  • DIY Assembly: Trace your tools, carefully cut black foam with to create tool pockets, peel adhesive backing from foam, and affix foam to red ABS plastic for shadowboard effect
  • Includes polyurethane convolute lid foam

• Download CAD Drawings*



  *CAD drawings are the sole and exclusive property of Pelican Products, Inc. ("Pelican"). By downloading drawings you are agreeing to the terms and conditions outlined here:
